Hidro-CPC

Commercial Pumps

Heavy Duty Hidro-CPC centrifugal pump with prefilter. It is suitable for large swimming pool projects, water parks or water treatment equipment.

Category:

    Materials:

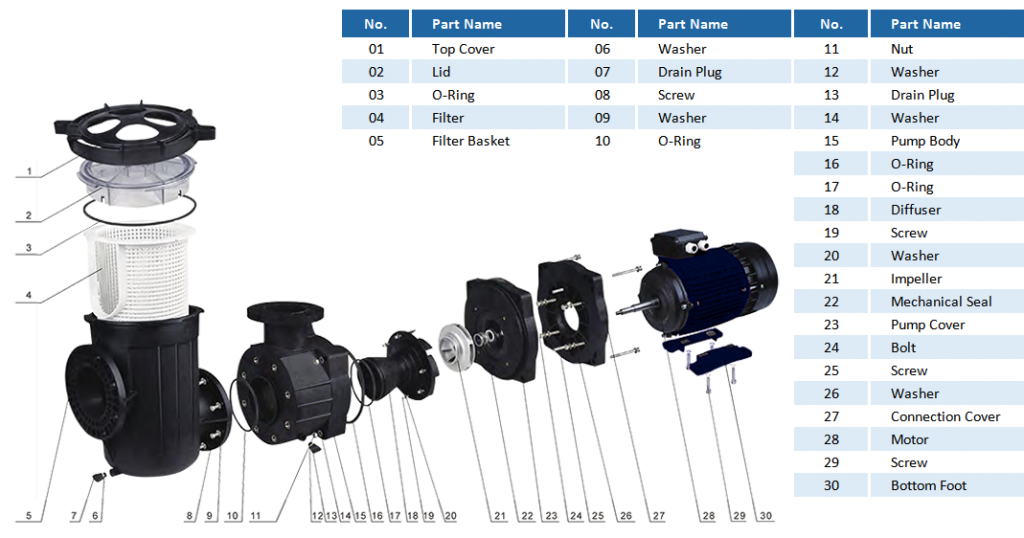

    1. Pump body, prefilter, diffuser, pump cover, connection cover, filter and impeller in PPO.
    2. Shaft in stainless steel AISI 304.
    3. Mechanical seal in sic-sic.

    Motor:

    Asynchronous, Class F insulation, Two poles, IP55 protection. Continuous operation.

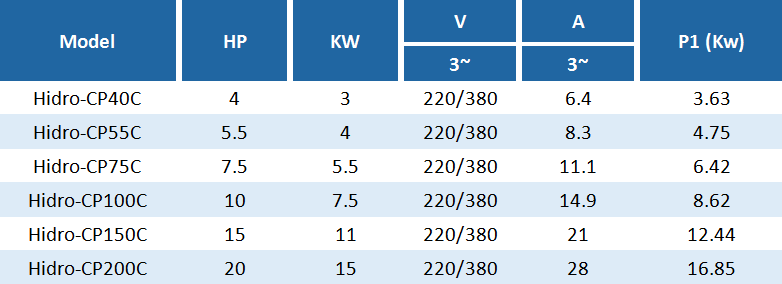

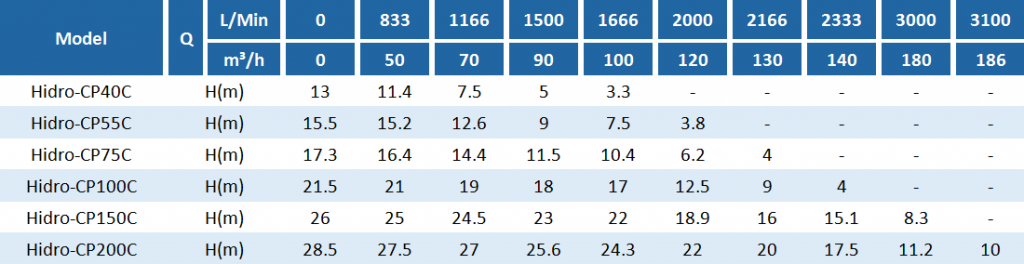

    Technical Data

    Dimensions

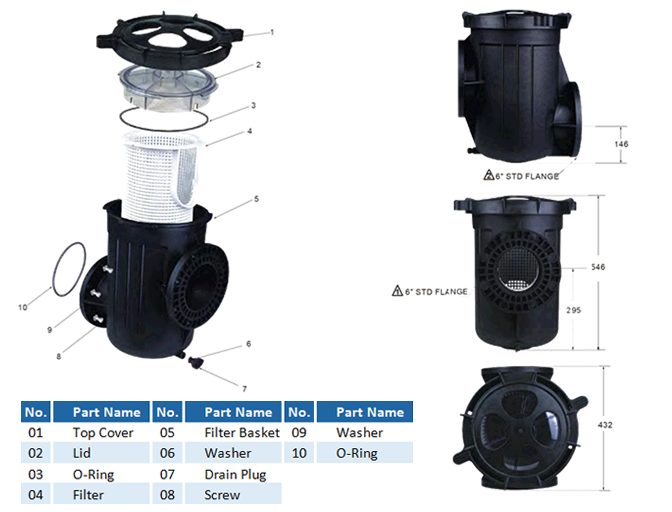

    Hidro-CPC 6″×6″ Strainer

    Manual and Catalogue

    MANUALES
    Manual for Commercial Pumps Hidro-CPC EN.pdf
    CATALOGUE
    Water Pump Catalogue.pdf

    Pictures
