PF-2010

Water Drain & Grattings series

Our Water Drain & Grattings Series are specially designed for flow rate easy regulation. The inner ABS sphere is premarked with 3 different diameters(14,20 or 25mm). With just a Clipper Tool, you can select the desired jet flow into your pool.

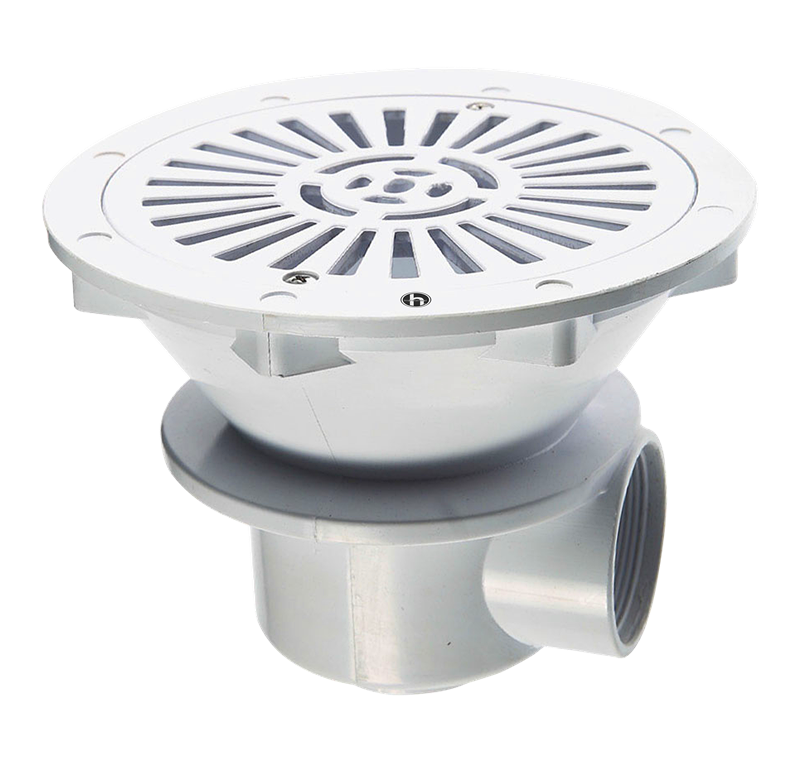

    PF-2010C

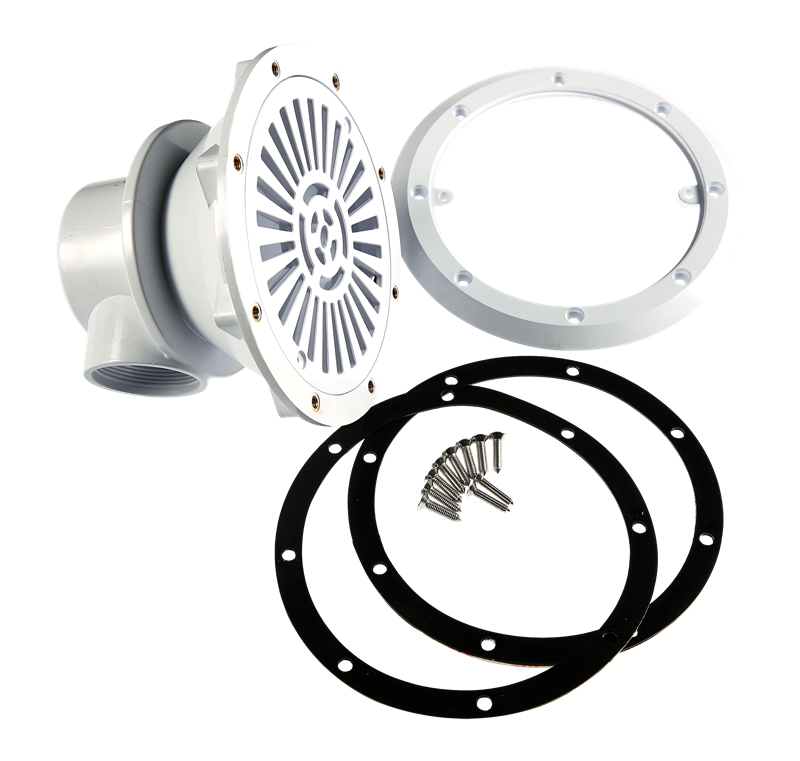

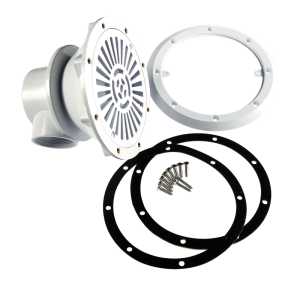

    PF-2010V

    ModelPG-Description Flow rate (L/min)
    PF-2010CMain drain with Ø 209 for Concrete pool, G2 threaded (60.2mm)217

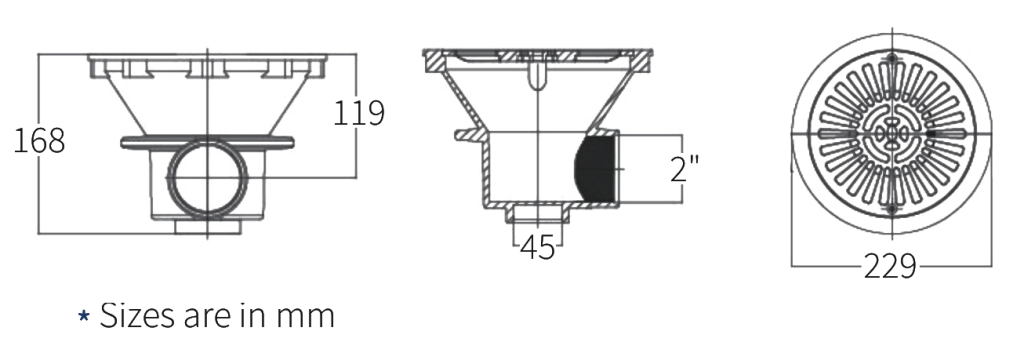

    PF-2010VMain drain with Ø 209 for Viny pool, G2 threaded (60.2mm)217

    Manual and Catalogue

    MANUALES
    Manual for PF-2010.pdf
    CATALOGUE
    Pool fittings Catalogue.pdf
